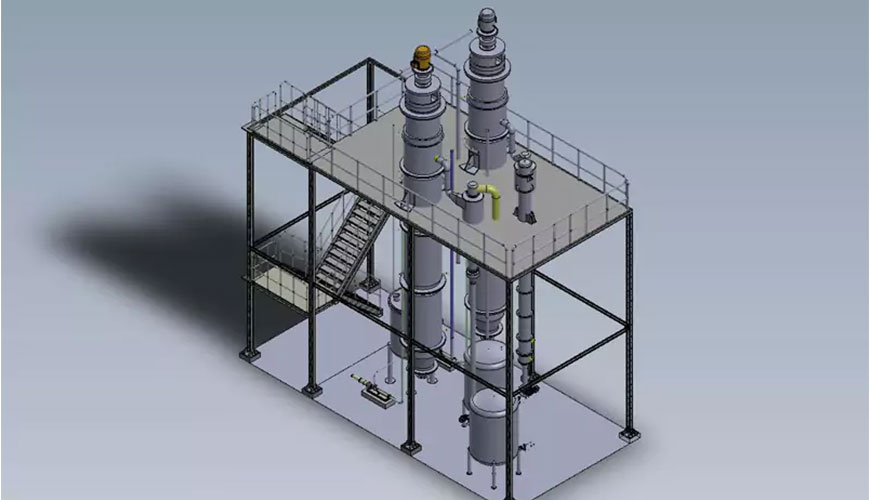

Industrial Agitated Thin Film Evaporator Manufacturer & Supplier in India

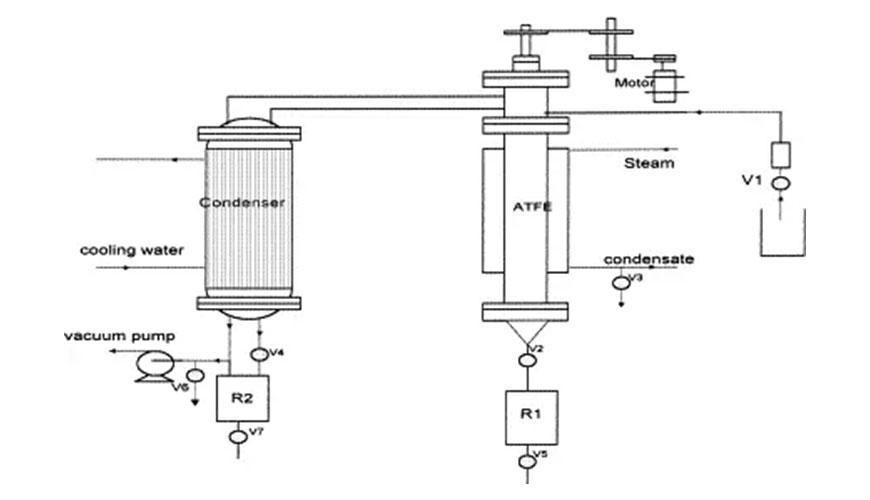

An Agitated Thin Film Evaporator (ATFE) is a specialized type of evaporator used for highly viscous, heat-sensitive, or fouling-prone materials. It employs a thin film of liquid spread over a heated surface to achieve rapid evaporation and separation of volatile components.

Key Features:

• Agitated Film Formation: A rotating agitator distributes the liquid as a thin, uniform film over the heated surface.
• Low Residence Time: Minimal contact time between the product and heated surface reduces thermal degradation.
• Operation Under Vacuum: Operates at low pressures to lower boiling points, making it ideal for heat-sensitive materials.
• Wide Viscosity Range: Can handle feed materials with viscosities ranging from low to extremely high (up to 100,000 cP).

Applications

• Pharmaceutical Industry: Concentration and purification of APIs (Active Pharmaceutical Ingredients).
• Chemical Industry: Distillation of high-boiling or heat-sensitive chemicals.
• Food & Beverage Industry: Concentration of fruit juices, flavors, and dairy products.
• Wastewater Treatment: Recovery of reusable components from waste streams.

Technical Specifications

• Heat Transfer Area: Typically ranges from 0.1 m² to 20 m² or more, depending on application.
• Operating Pressure: Vacuum up to 1 mbar or lower for heat-sensitive materials.
• Material of Construction: Stainless Steel (304, 316): For general and hygienic applications.
• Alloy Materials (Hastelloy, Inconel): For corrosive or high-temperature materials.
• Viscosity Handling: Capable of processing materials with viscosities up to 100,000 cP.
• Temperature Range: Up to 350°C or more, depending on the application.
