Industrial Rotary Air Lock Manufacturer & Supplier in India

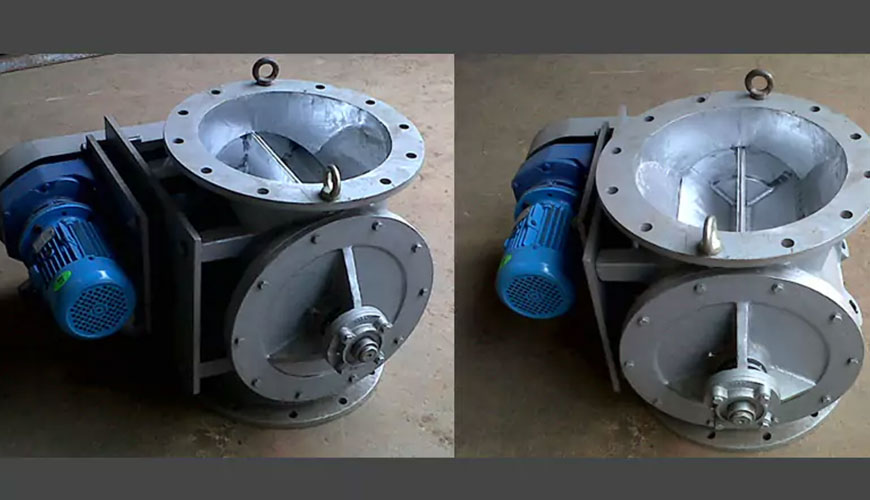

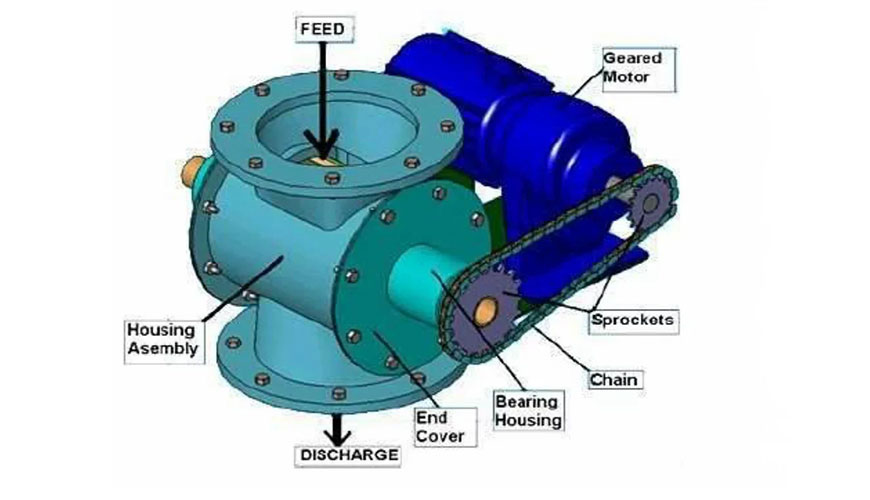

A Rotary Airlock Valve is a precision mechanical device used to regulate the controlled discharge of bulk materials while maintaining an airtight seal between two pressure zones. It is widely used in industrial material handling systems for transferring powders, granules, and pellets without compromising system pressure or causing air leakage.

Applications

• Dust Collection Systems: Commonly used as a discharge device for cyclones and bag filters, allowing collected dust to be removed while preventing air loss from the system.
• Pneumatic Conveying Systems: Provides a consistent and controlled feed of materials into positive or negative pressure conveying lines.
• Bulk Material Handling: Efficiently transfers materials such as cement, grains, sugar, plastics, and chemicals between storage and processing equipment.
• Food & Pharmaceutical Industries: Ensures hygienic and contamination-free handling of sensitive powders and granules with precise flow control.

Key Specifications

• Capacity: Typically measured in cubic feet per revolution (CF/rev) or cubic meters per hour (m³/h), depending on application requirements.
• Capacity Range: Generally available from 0.5 to 500 CF/rev or higher for heavy-duty industrial applications.
• Rotor Speed: Operates typically between 10 to 60 RPM, adjustable based on material characteristics and flow rate requirements.
• Temperature Range: Standard models operate between -20°C to 150°C, while high-temperature versions can handle up to 450°C for abrasive materials such as ash or cement.
